NEW UPDATE, Symmetrical legs, only need to print the same leg twice instead of worrying about left and right versions of legs. not compatible with previous versions. previous version files in Archive
Design Files Now Available for Purchase Here

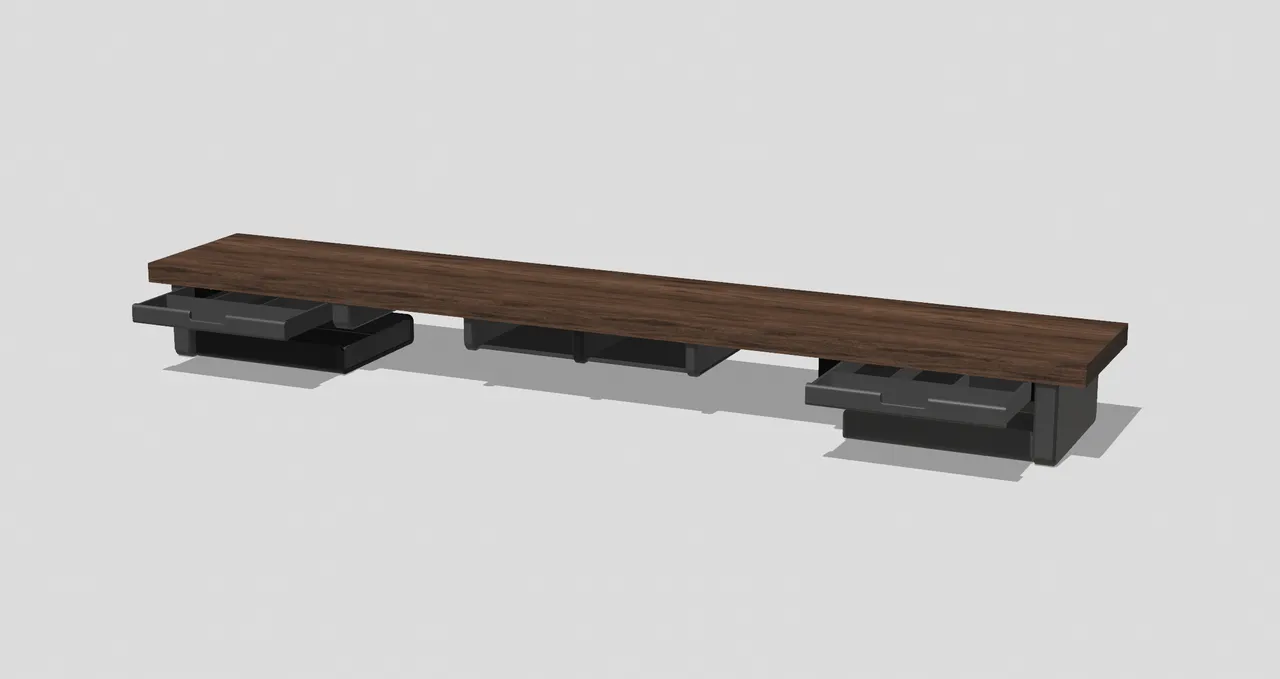

Raz's Desk Organizer:
Designed to be modular and expandable, Inspired by products from Grovemade and Desky.
2024 Printables Awards Model Of the Year Nominee:
Thanks to all who nominated and voted for Raz's Desk Organizer in this years Printables Awards. I appreciate the support, it keeps me motivated to come up with new ideas and projects! I have learned a lot from this project and plan to continue supporting it.
##################################################################
Shopping List
• Leg attachment hardware - 1/4-20 x 25/32 threaded wood inserts, Hex Socket Drive 1/4-20 x 19/32" Screw-in Nuts
• Threaded inserts for 3d Prints (for assembly) - M3x4x5 mm brass threaded inserts
• Screws (for assembly) - M3 x 8 Hex Socket Flat Head Screws
• Leg Feet (Optional but recommended) - Any feet will work as long as they are .7 inches or smaller

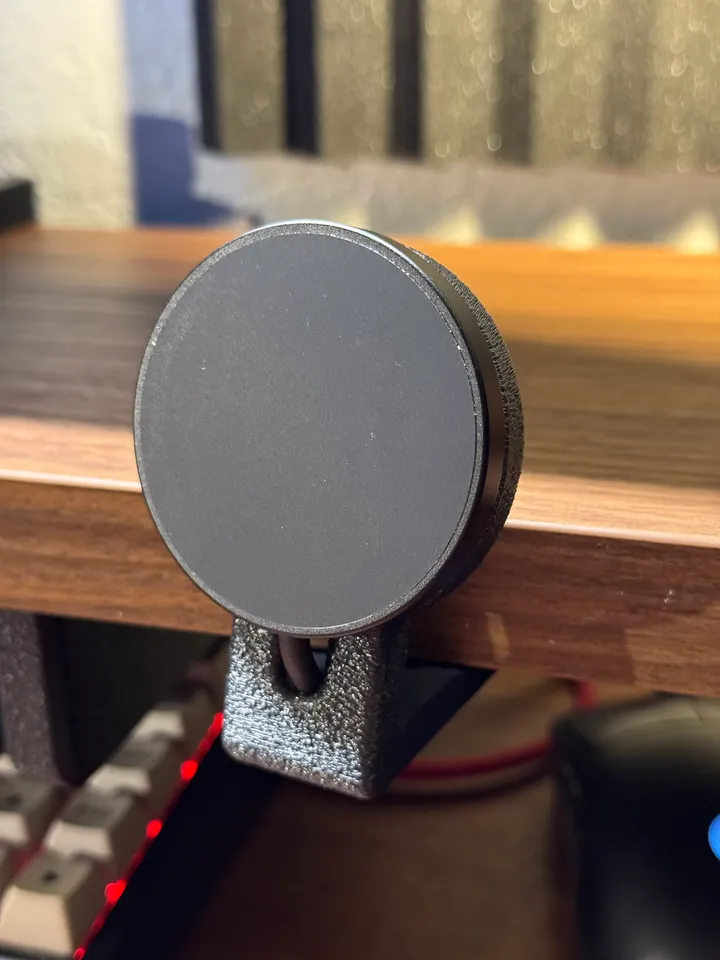

• Mag Safe Charger (Optional) - Should work with any mag safe charger.
• Designed around IKEA 7 7/8" BERGSHULT Shelf choose between 47 inch or 31 inch.
• Felt, sold at any hobby store/arts crafts isle. (Optional Upgrade)
##################################################################
Required Tools
• Drill, with 3/8ths drill bit.
• Soldering Iron
• Allen Wrench set
• Double Sided Tape
##################################################################

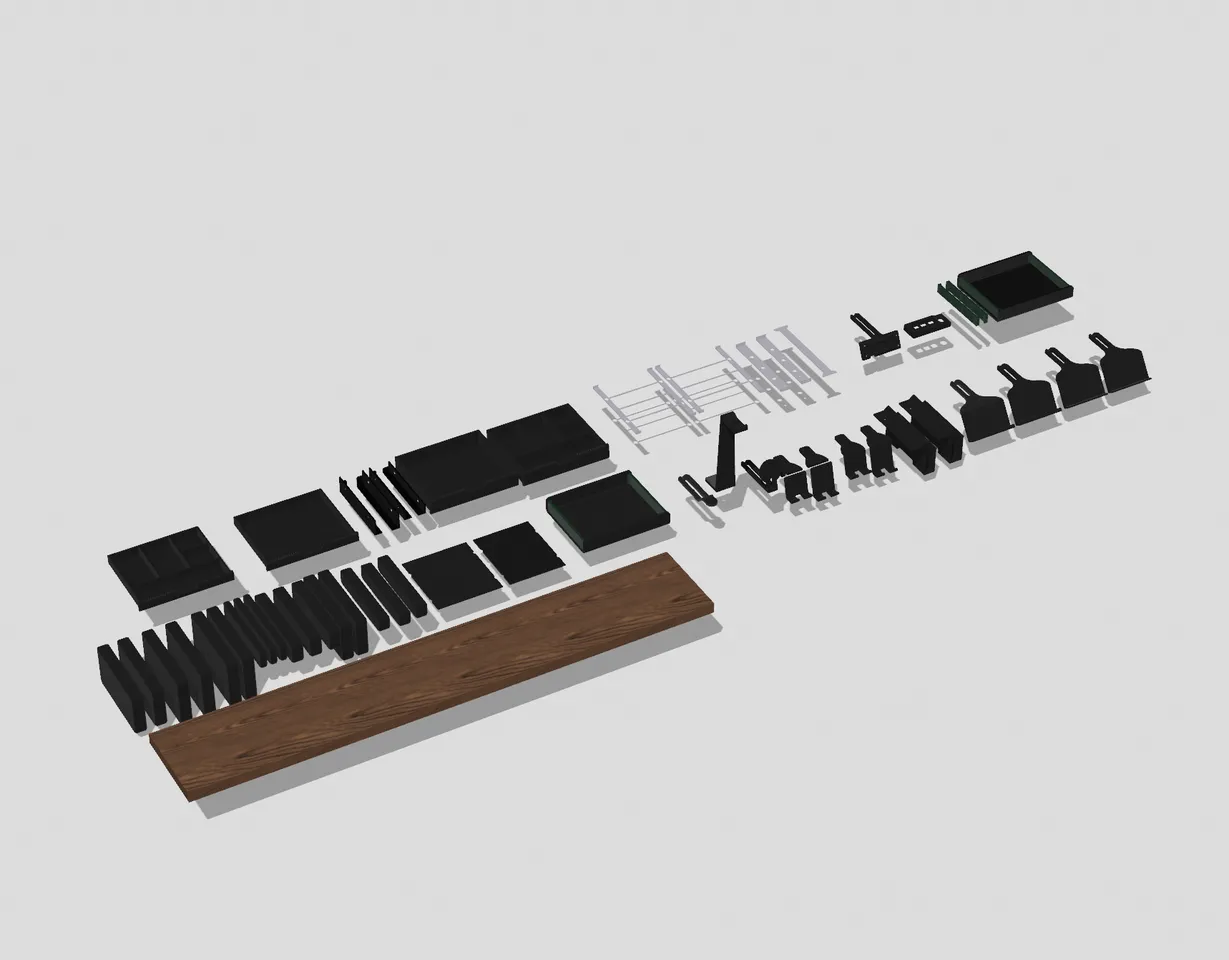

Print and Part List For Example in first Picture : Google Sheet
• Will add more examples and builds in future, feel free to share yours! i can add them to this list.
##################################################################
Printing Details
• Fuzzy Skin (Optional)
•
• Infill - For Legs and Shelf Supports, 10% infill; For everything else 15% minimum infill recommended
• Filament- Printed with Black Creality PLA. Note: PETG might be a better option for some of the accessories but no issues so far with PLA
• Supports - Parts were designed to require minimal supports, orient them with flattest part touching build plate and enable supports everywhere.
Assembly Instructions/Tips
Legs
• Print Jigs to help with mounting hole alignment. Tip: use double sided tape to fix on to surface, Use jigs with Left Right Labels facing the edge that will be facing you when on the desk.
• Example of Jig usage-
• Use 3/8ths drill bit to drill holes for Wood inserts.

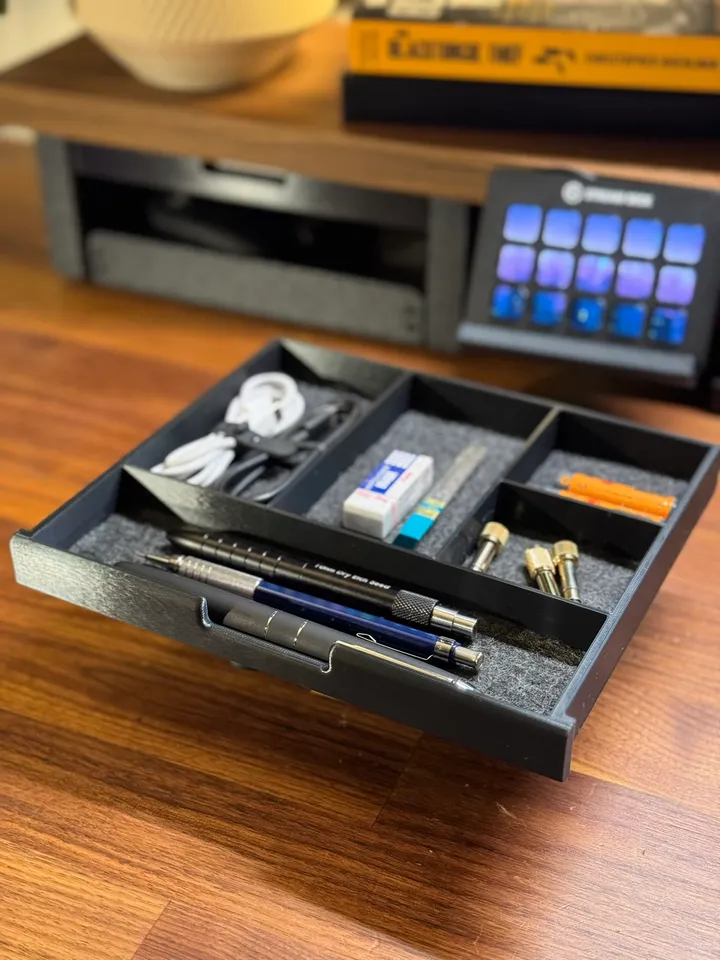

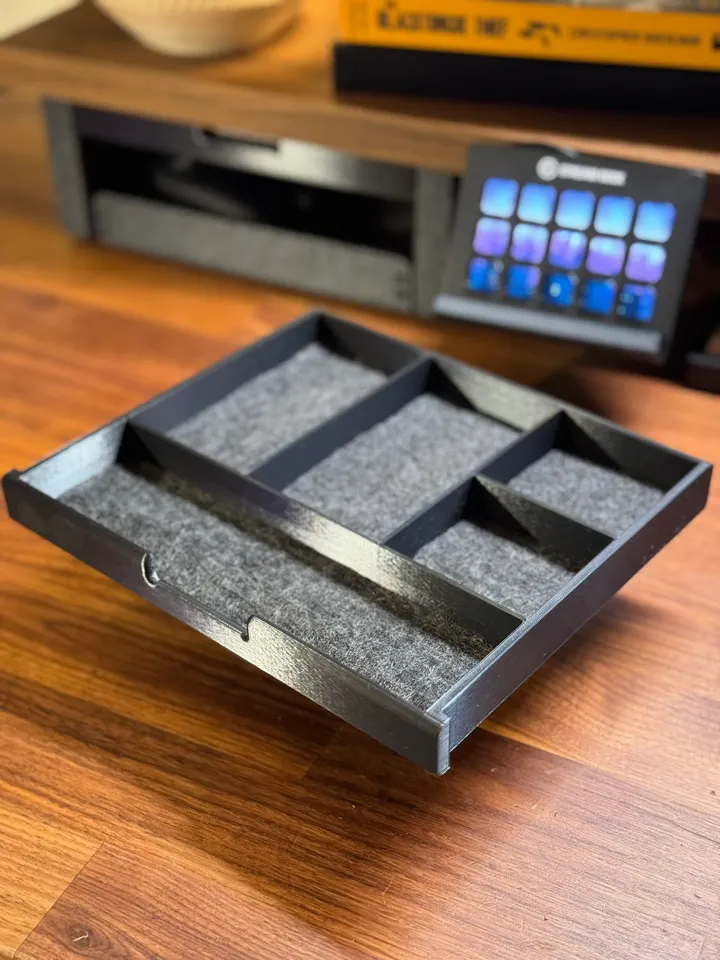

• Use Soldering iron to press threaded inserts into legs for mounting (this is optional if you do not plan on using DrawerTrays)
• Use Hex Socket Drive 1/4-20 x 19/32" Screw-in Nuts to attach legs to Ikea wood Shelf
• Attach the drawer rails using flathead head hex screws

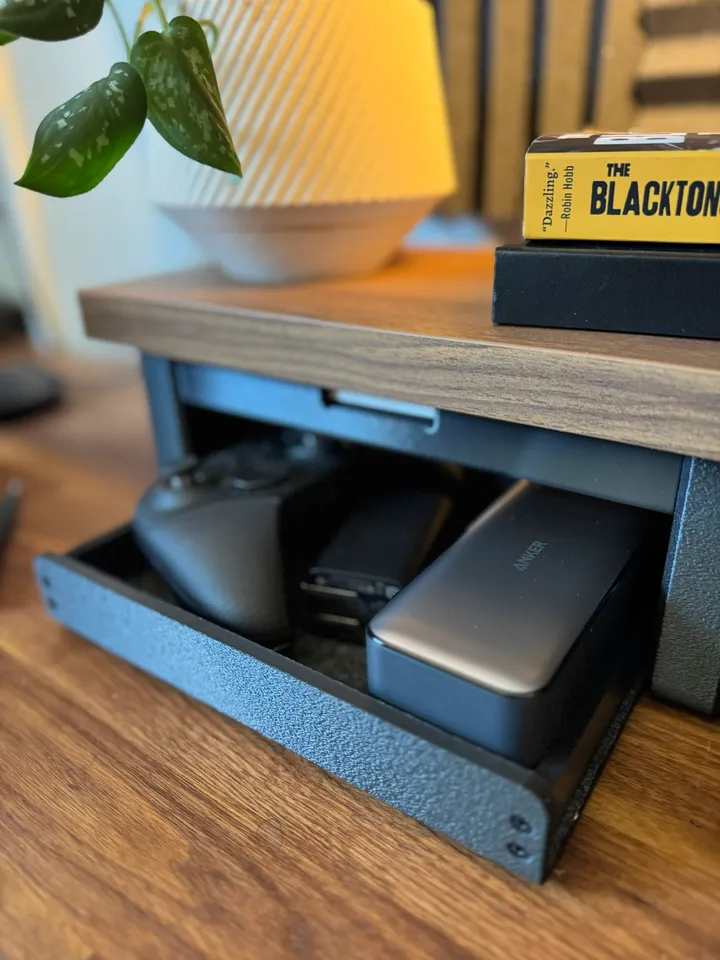

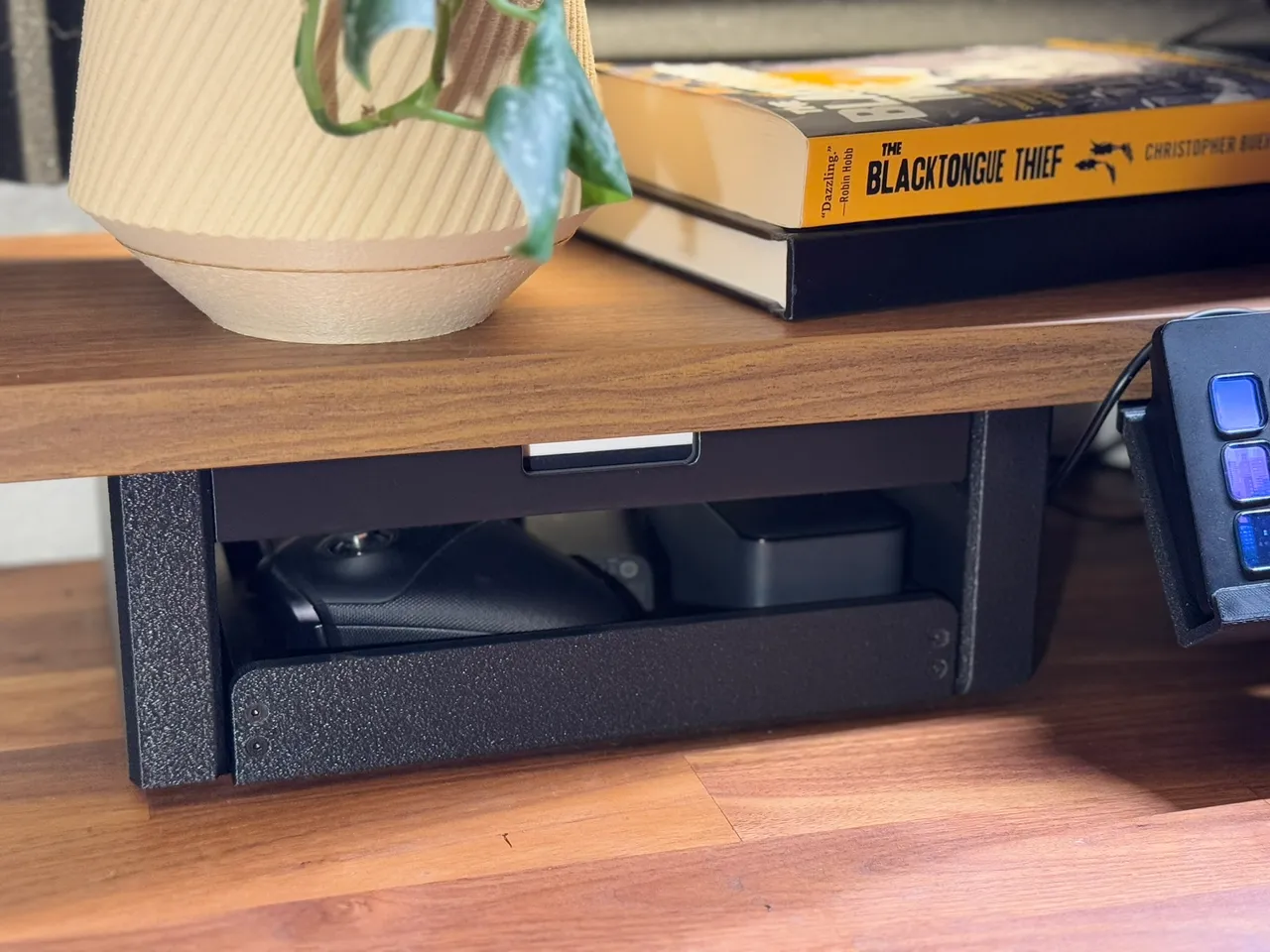

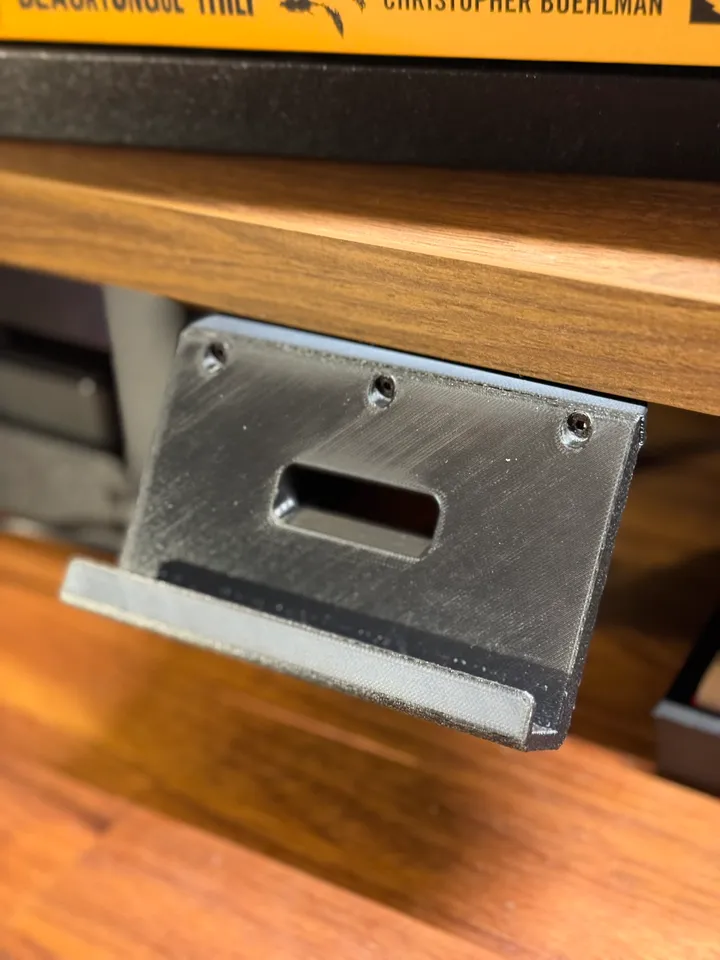

Bottom Mounted Shelves
• The bottom mounted small shelves are friction assembled. Tip: The shelf part is keyed so make sure its aligned before adding pressure.
• Use the "RazMade Table_Shelf Jig" to place the mounting holes
• Recommended: You may run into issues with tolerances and the friction fit, Highly recommend considering this Remix for the shelves that use screws for assembling this piece.

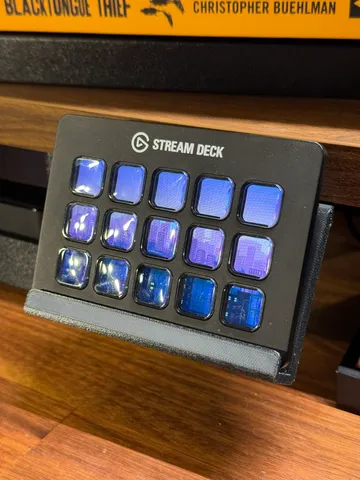

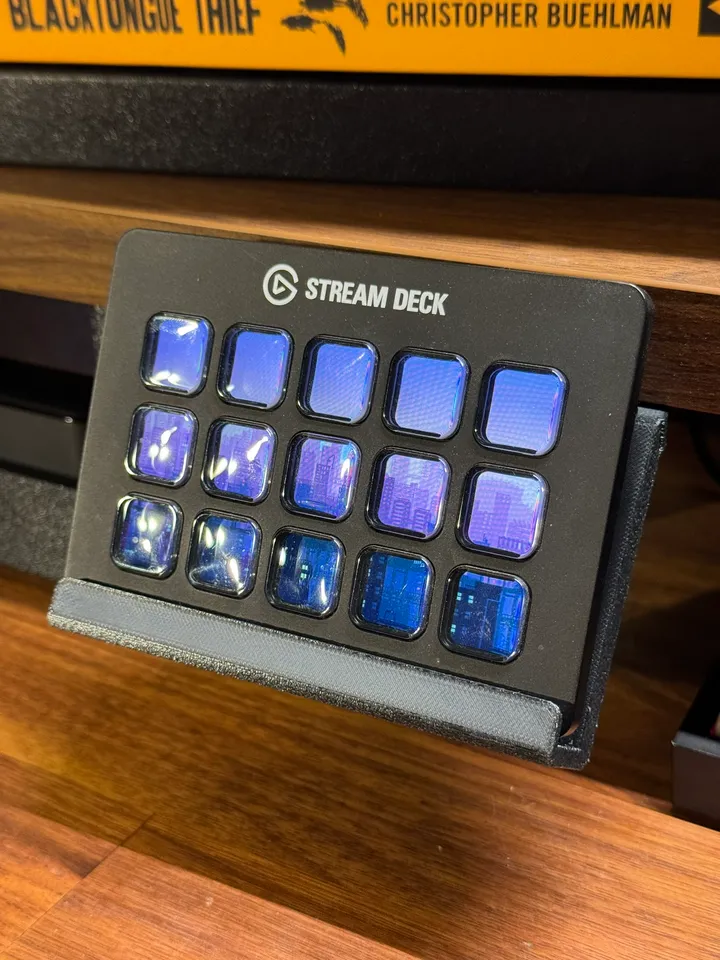

Peripheral Accessories( Stream Deck/Phone Mount)
• Use "Leg Jig_LeftRight" to drill 1 hole for mounting accessories, use the hole that is closest to the edge of the IKEA shelf that will be facing you.
• Place threaded wood insert in hole
• attach Peripheral Mounts using Hex Socket Drive 1/4-20 x 19/32" Screw-in Nuts (Washer Optional)

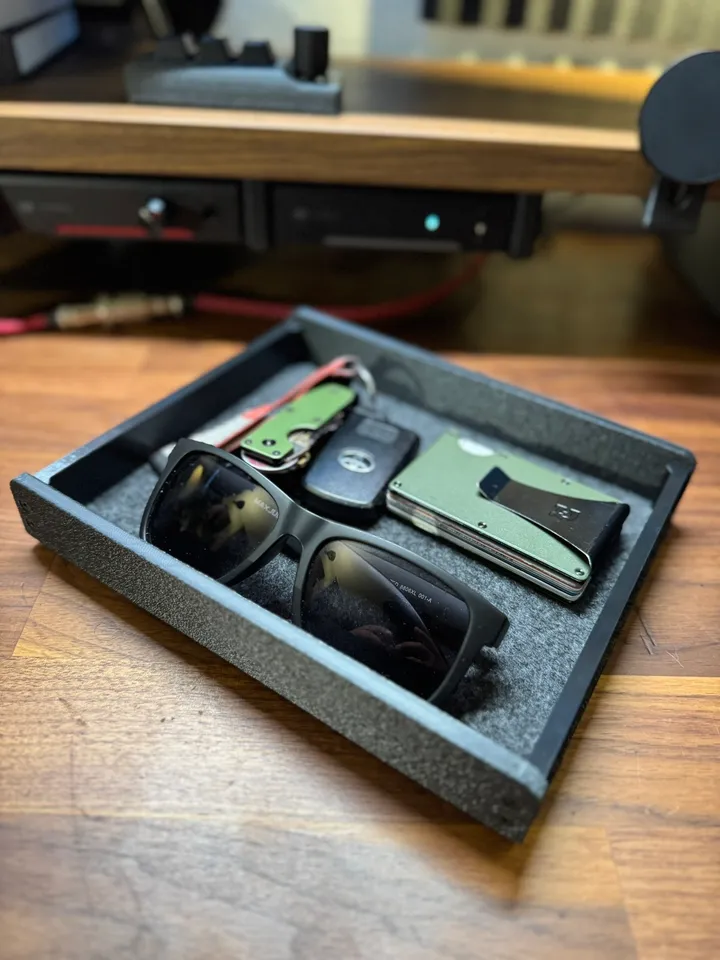

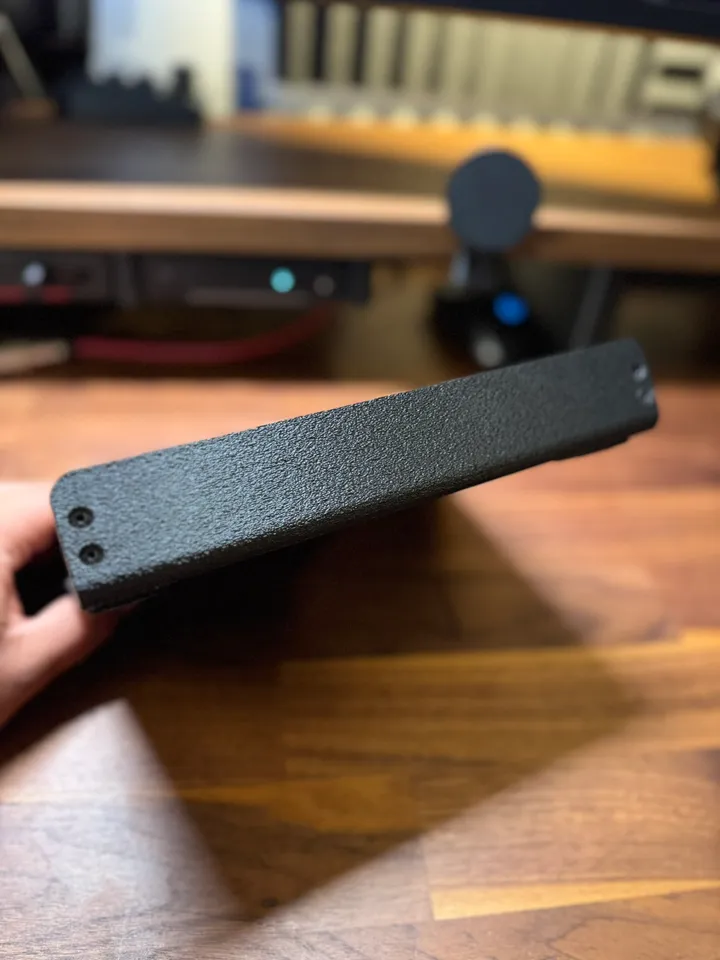

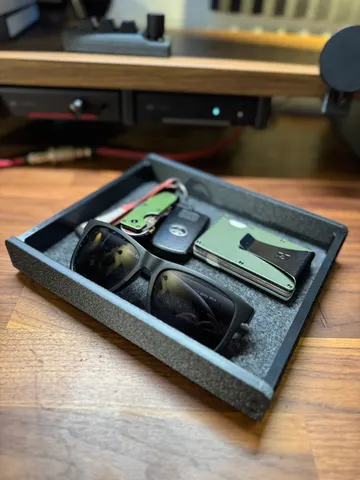

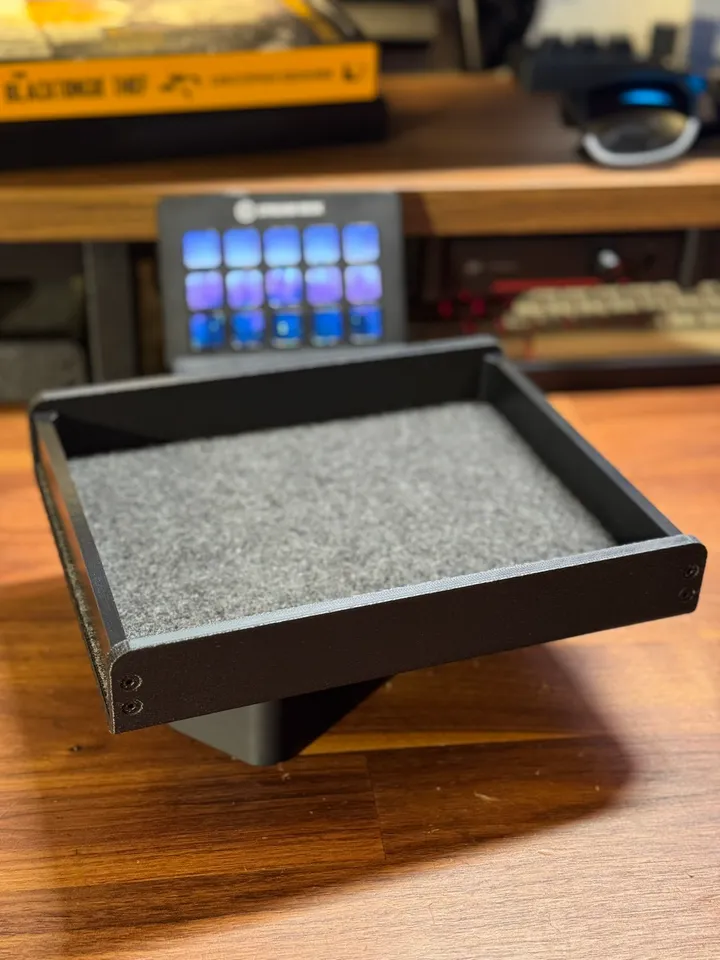

Desk Tray
• Push threaded inserts into “Desk Tray_TraySide_L” and "Desk Tray_TraySide_R"
• Screw TraySide into place
• Tip: If you plan on lining tray with felt, use double sided tape to attach it before putting on the tray sides.
Note
• I have created some solid versions of models which would normally require threaded inserts and assembly, the versions required assembly were designed to print faster with less supports.
#####################################…
