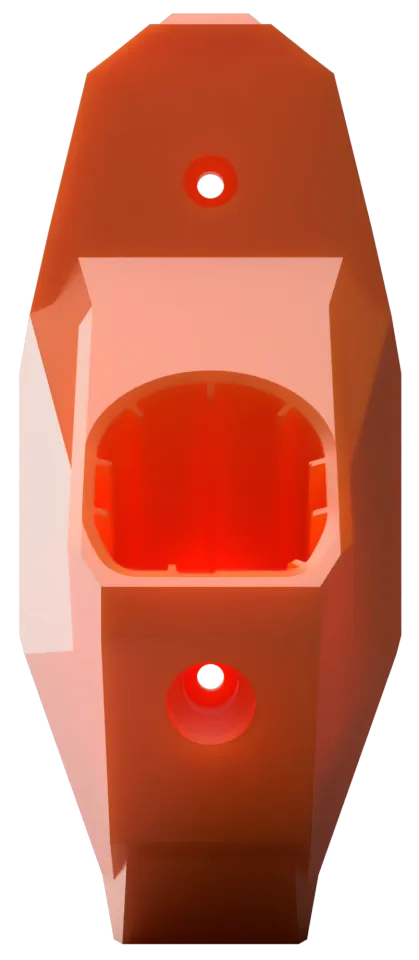

Ryobi Power Tool Battery Holder
This holder is designed to hold Ryobi batteries while looking sharp when empty. It's beefed up structure holds the battery at a 45 degree angle, allowing the battery to easily slide into place to become one with the wall.
Print instructions
HARDWARE
• Screws: x2 wood self tapping countersunk screws
• Marker, pencil, or pointed tip
• Screw Driver
UPDATE
5/11/2024 - Relocated logo for improved bed adhesion
INSTRUCTIONS
• Position the battery holder on the wall. Mark the hole position using a pencil or pointed tip.

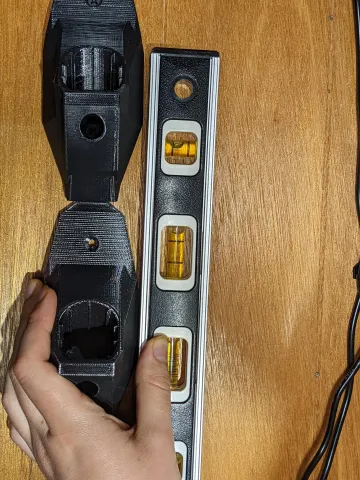

NOTE: The edges of the battery holder are are straight up and down which allows you to use a level if need (hopefully better than me lol)

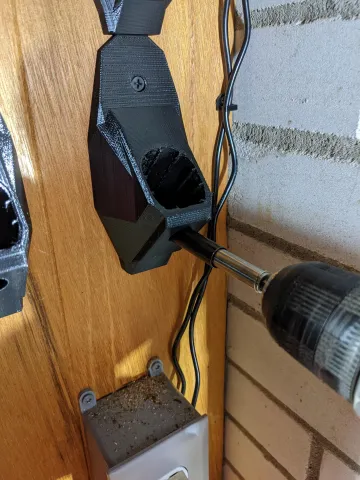

• Using self tapping screws insert the 4 screws into each corner of the holder. Depending on the type of wall you are screwing into you might want to use wall anchors or screw directly into a stud.
(Optional) drill pilot holes for screws using a diameter smaller than the screw.
• If installing more than one battery holder please notice the notch on the top and bottom, these interlock slightly for easier alignment for placement.
If batteries larger than 4ah you might want to increase this gap to prevent batteries above from blocking the opening for the lower holder.
PRINT SETTINGS
Filament: PLA (PETG or ABS for heavier duty storage)
Nozzle Size: 0.4mm
Print Height: 0.2-0.35mm
Infill: 10-20%
RELATED PRINTS
DeWalt Battery Holder
Download HERE
Tool Holders - Ryobi
Download HERE
ORGANIZE THE REST OF YOUR SHOP
This holder comes from the same workshop as the GEN2 Modular Storage System · a free 3D printable storage system with swappable drawers, cases, covers, and wall mounts. If your bench could use the same treatment as your batteries, the free GEN2 Planner lets you design a full setup in 3D and hands you the exact print list: gen2planner.jerrari3d.com
SUPPORT MY DESIGNS
My designs are free. If they save you time or space, you can support the project by joining the Jerrari Club (CAD and STEP files, early access, premium drops) or picking up a premium faceplate collection · it means a lot and directly fuels new designs.
• Jerrari Club: Join here
• Premium faceplates: Decor Faceplate Collections
